Description

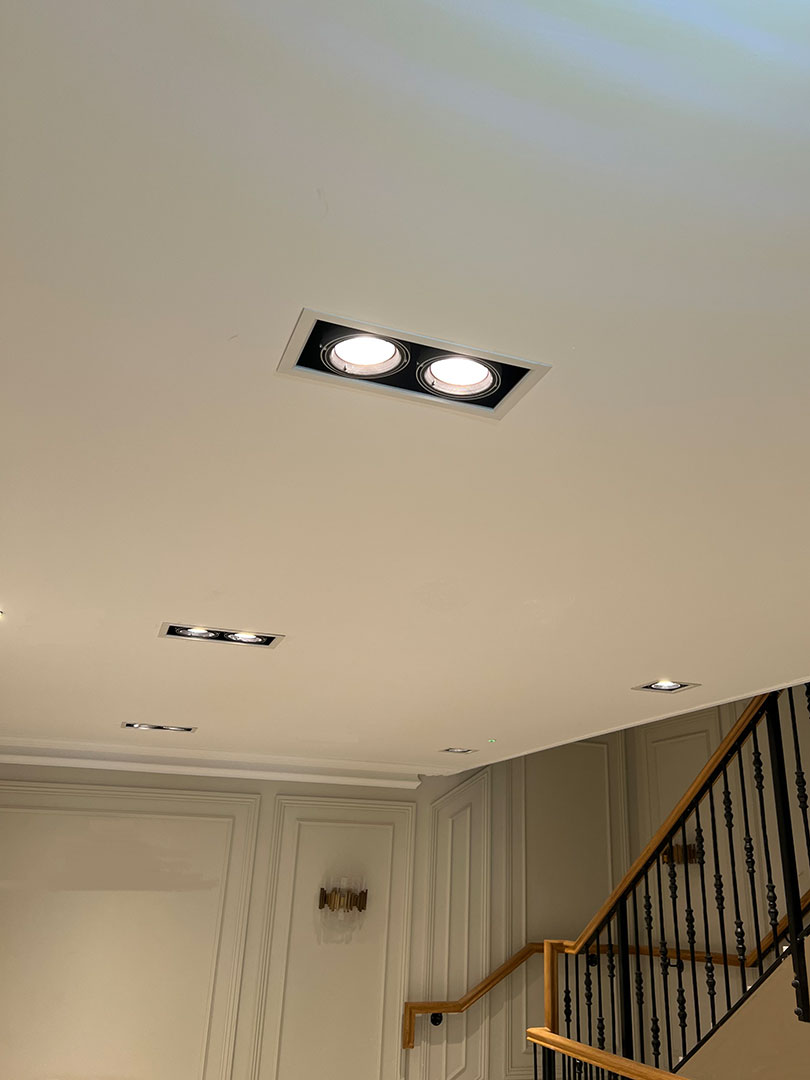

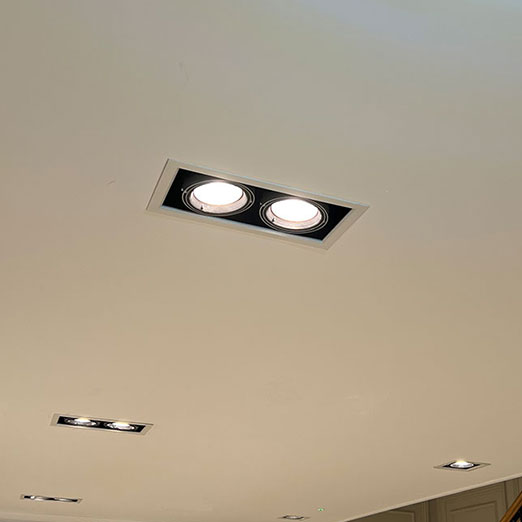

Adjustable gimbal downlight for 12v AR111 LED lamps. Die cast aluminium and steel body. White finished frame with silver gimbals and black lamp retaining rings
Supplied complete with Osram LED lamps and transformer.
| Cat no | LED lamp | Dimensions |
|---|---|---|
| F790/1LED | 1 lamp version | 190mm x 190mm x 110mm deep. Cut-out 165mm x 165mm |
| F790/2LED | 2 lamp version | 353mm x 190mm x 110mm deep. Cut out 310mm x 165mm |
| F790/3LED | 3 lamp version | 503mm x 190mm x 110mm deep. Cut out 470mm x 165mm |
Add suffix /EL to Cat no for 3 hour self-contained maintained emergency version.
LED charge indicator 25mm OA dia x 25mm recessed depth Cut-out 20mm dia. (mounted separately)
